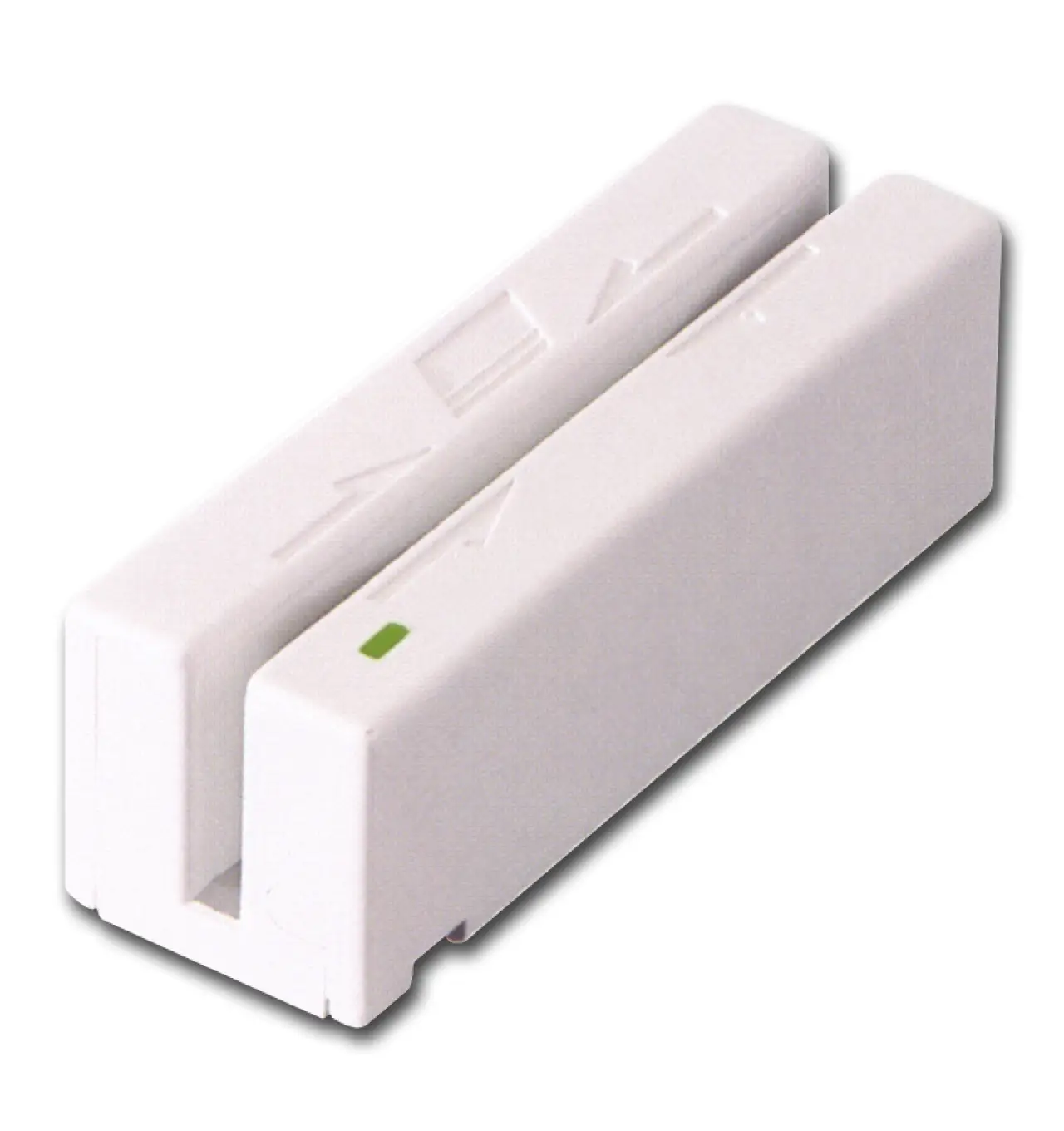

Powered USB bus–no external power supply required.
Hardware compatible with any computer or terminal with an USB interface
Single, dual or three track capability
Bi-directional read capability
Reads encoded cards that meet ISO/ANSI/CDL/AAMVA standards
Up to 1,000,000 passes with ISO-conforming cards
Includes USB interface cable
USB HID class vendor-defined MSR emulation or keyboard emulation
Available in black or white

Specifications

OPERATING

MECHANICAL

Reference Standards:

ISO, ANSI, CDL and AAMVA

Power Input:

From USB

Recording Method:

Two-frequency coherent phase (F2F)

Message Format:

Vendor defined emulation

Card Speed:

3 to 50 IPS

MTBF:

Electronics: 125,000 hours
Head: 1,000,000 passes

Dimensions:

Length: 3.94” (100mm)
Width: 1.28” (32,5mm)
Height: 1.23” (31,3mm)

Weight:

Reader with cable: 5.8 oz. (1,65g)

Connector:

USB

ENVIRONMENTAL

Temperature:

Operating: 32oF to 131oF (0oC to 55oC)
Storage: -22oF to 158oF (-30oC to 70oC)

Humidity:

Operating: 10% to 90% noncondensing
Storage: Up to 100% noncondensing

Humidity:

Operating: 0-10,000 ft. (0-3,048m)
Storage: 0-50,000 ft. (0-15,240m)

Ordering Information

Track 2, pearl white

Track 1 & 2, pearl white

Track 1, 2 & 3, pearl white

Track 2, black

Track 1 & 2, black

Track 1, 2 & 3, black

P/N 21040105

P/N 21040103

P/N 21040101

P/N 21040106

P/N 21040104

P/N 21040102
